Lockit-Lever Series

Lever handle hotel lock with concealed clutch and multiple mortise options.



RFID card IC card + mechanical key Multiple mortise options
Factory Number: H160

Overview

Lockit-Lever product overview

  • Patent design for RFID card hotel lock.
  • Concealed clutch and PCB inside the handle.
  • #5 zinc alloy lock handle and cylinder plate.
  • Bright chrome or black nickel polish treatment.
  • Free handle with patent clutch inside. Pull up the handle to activate the deadbolt.
  • Various mortises available (45/85, 50/85, 60/85, 70/85).
  • Widely used to replace old Europe-style mechanical locks.
  • Works with IC card and mechanical key, with lock software for management.

Key specifications

Handle typeLever handle
Finish optionsBright chrome or black nickel polish
Mortise options45/85, 50/85, 60/85, 70/85
Use casesApartment, homestay, hotel
OperationIC card + mechanical key; supports management software

Product imagery

High-resolution product views and installation references for the Lockit-Lever (H160).

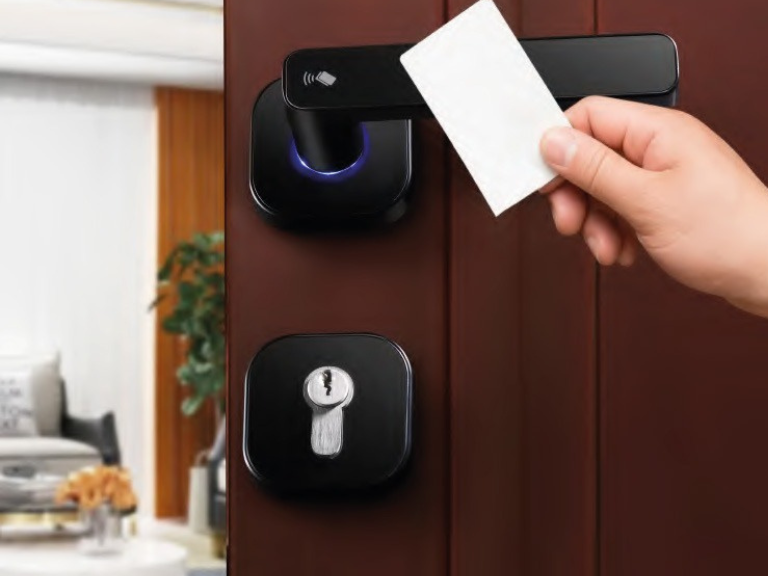

Lockit-Lever front view
Product

Front view

Lever handle, reader, and exterior trim.

Lockit-Lever installed on door
In use

Installed

Typical hospitality and apartment installation.

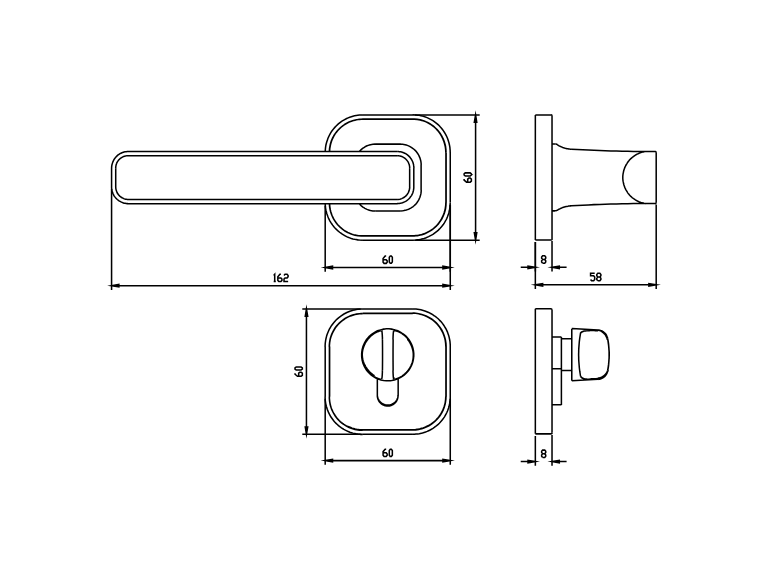

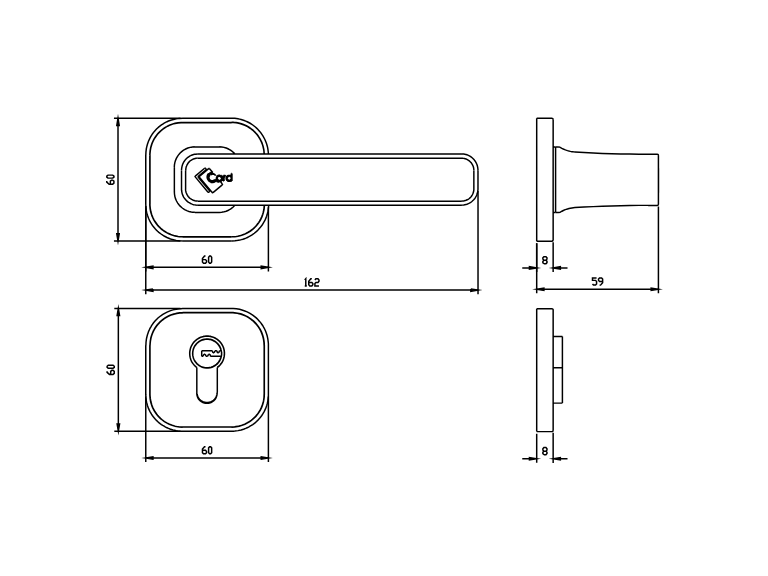

Lockit-Lever dimensions and layout
Reference

Dimensions

Mortise spacing and cutout guidance.
