Lockit-Summit Series

Patent design split lock for hospitality and high-frequency access.

Offline RF proximity Backup mechanical key
Factory Number: S100

Overview

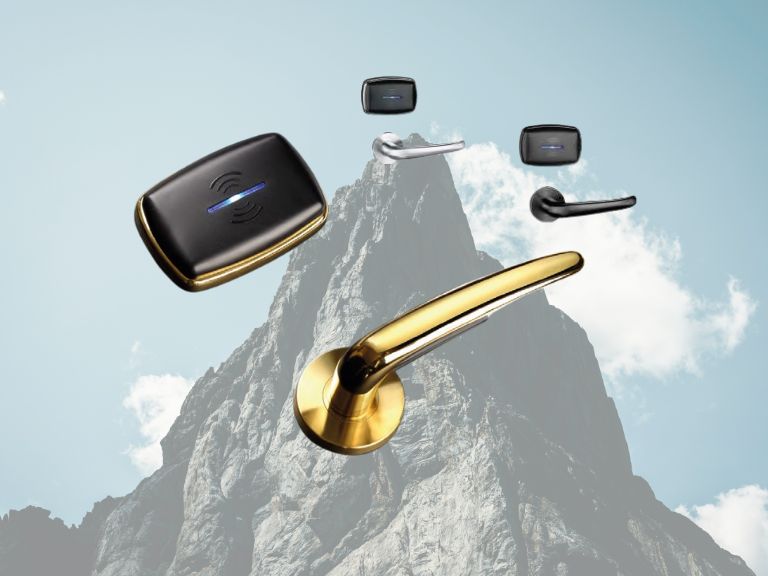

Lockit-Summit product overview
  • 304# stainless steel reader, handle and collar.
  • Backup mechanical key (brass + ABS).
  • Proximity RF technology, fast and stable.
  • Die-casting stainless steel latch and deadbolt.
  • Low power alarm. Guest card can still open the door.
  • User-friendly software, easy to use and manage.

Key specifications

Mechanism304# reader, front/back panel and handle
Unlock methodMifare card or mechanical key
Power supply4×AA alkaline battery (DC 6V)
Static current25 µA
Dynamic current< 150 mA
Working temperature-20 to 45 °C
Working humidity20% to 95%
Door thickness40 to 65 mm
Suggested usageWood door

Product imagery

High-resolution product views and installation references for the Lockit-Summit (S100).

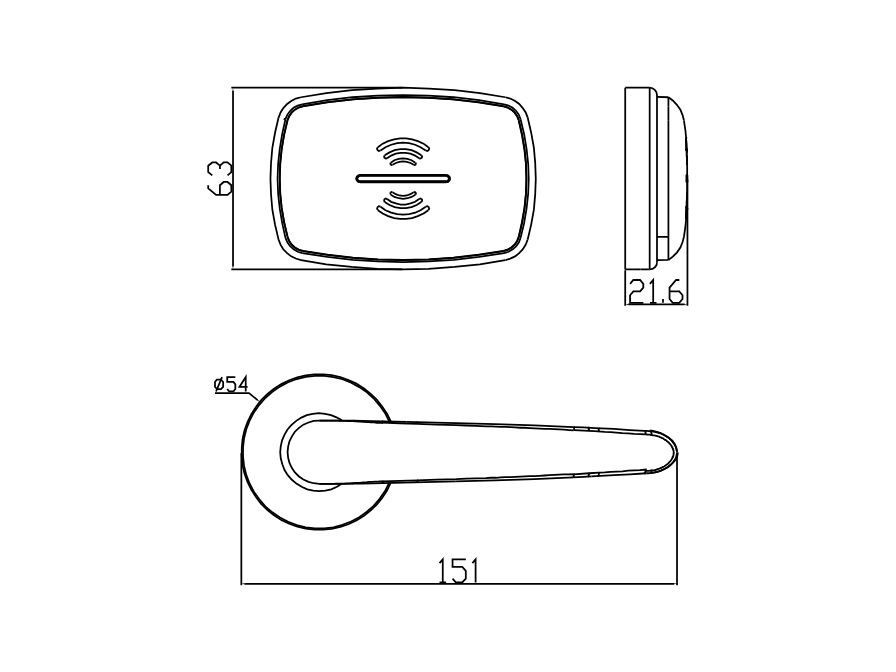

Lockit-Summit front view
Product

Front view

Reader, handle, and exterior trim.

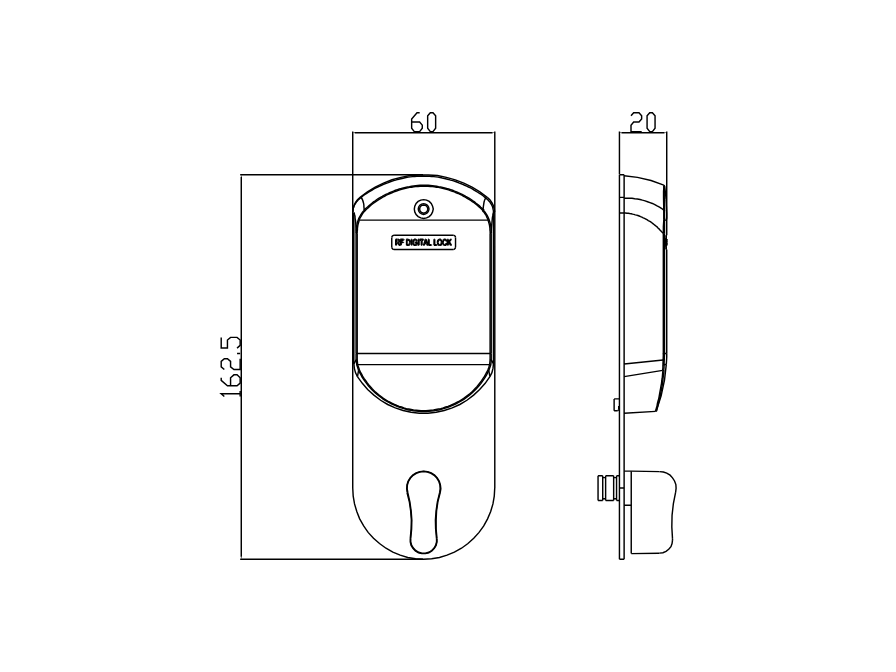

Lockit-Summit installed on door
In use

Installed

Typical hospitality installation.

Lockit-Summit dimensions and layout
Reference

Dimensions

Clearance and cutout guidance.
