Lockit-Glide Series

Proximity RFID handle set with LED reader ring and mobile access support.



Offline Proximity RFID Bluetooth mobile access
Factory Number: S190

Overview

Lockit-Glide product overview

  • Material: zinc alloy handle and rosette.
  • Emergency cylinder hidden inside the handle.
  • Proximity RFID technology, fast and durable.
  • LED indicator around the lock reader.
  • Special design for hidden battery and PCB inside the mortise.
  • Supports Bluetooth technology with mobile access.

Key specifications

Construction#5 zinc alloy handle, CNC aluminum reader
Unlock methodMifare card or mechanical key
Power supply4×AA alkaline battery (DC 6V)
Static current25 µA
Dynamic current< 150 mA
Working temperature-20 to 45 °C
Working humidity20% to 95%
Door thickness40 to 65 mm
Suggested usageWood door

Product imagery

High-resolution product views and installation references for the Lockit-Glide (S190).

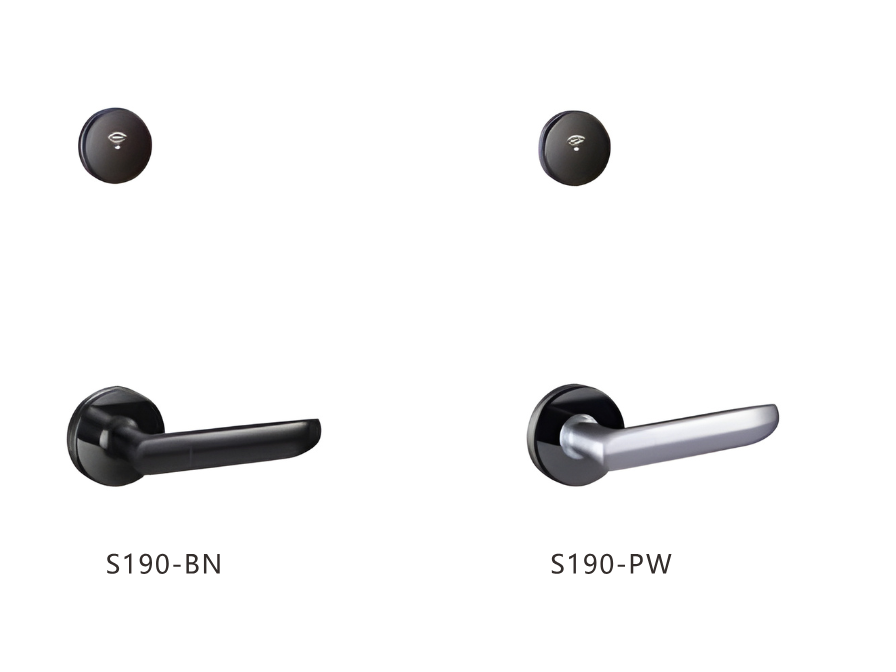

Lockit-Glide front view
Product

Front view

Reader ring, handle, and exterior trim.

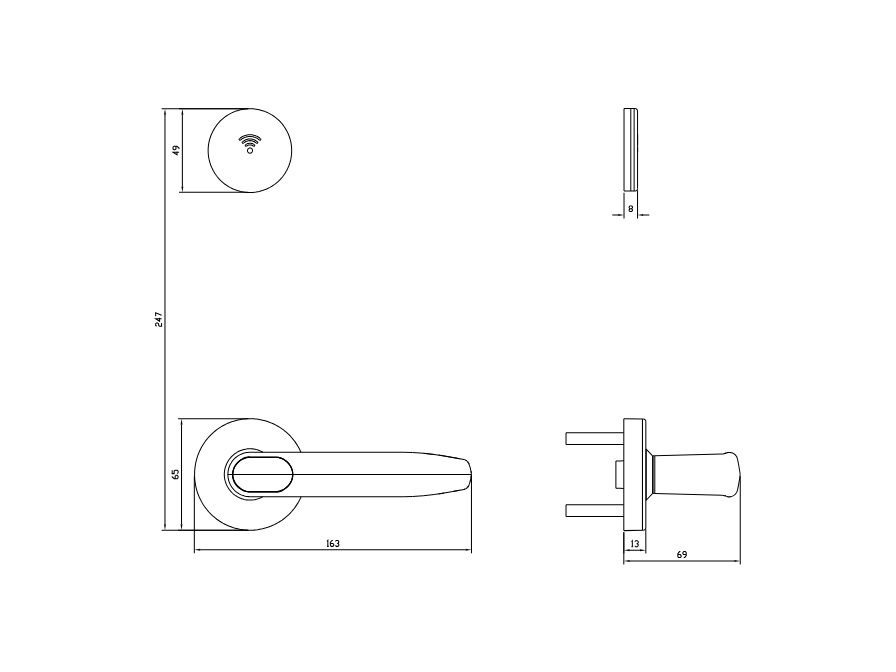

Lockit-Glide installed on door
In use

Installed

Modern hospitality installation reference.

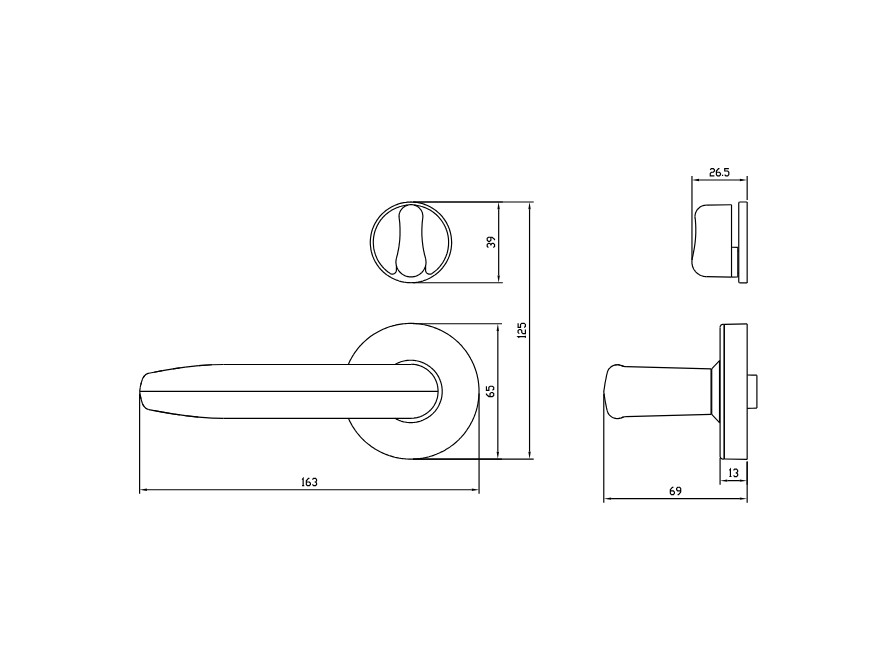

Lockit-Glide dimensions and layout
Reference

Dimensions

Clearance and cutout guidance.
