Split hotel lock with premium materials and configurable handles.
| Mechanism | 304# reader, front/back panel and handle |
| Handle options | Leather handle with solid structure (optional) |
| Unlock method | Mifare card or mechanical key |
| Power supply | 4×AA alkaline battery (DC 6V) |
| Static current | 25 µA |
| Dynamic current | < 150 mA |
| Working temperature | -20 to 45 °C |
| Working humidity | 20% to 95% |
| Battery life | Normal open: 15,000 times |
| Low power alarm | Below 4.8V: di-di-di beep, then ~150 opens remaining |
| Audit trail | 990 latest records (incl. mechanical key) |
| Door thickness | 40 to 65 mm |
| Suggested usage | Wood door |
High-resolution product views and installation references for the Lockit-Premier (S180).

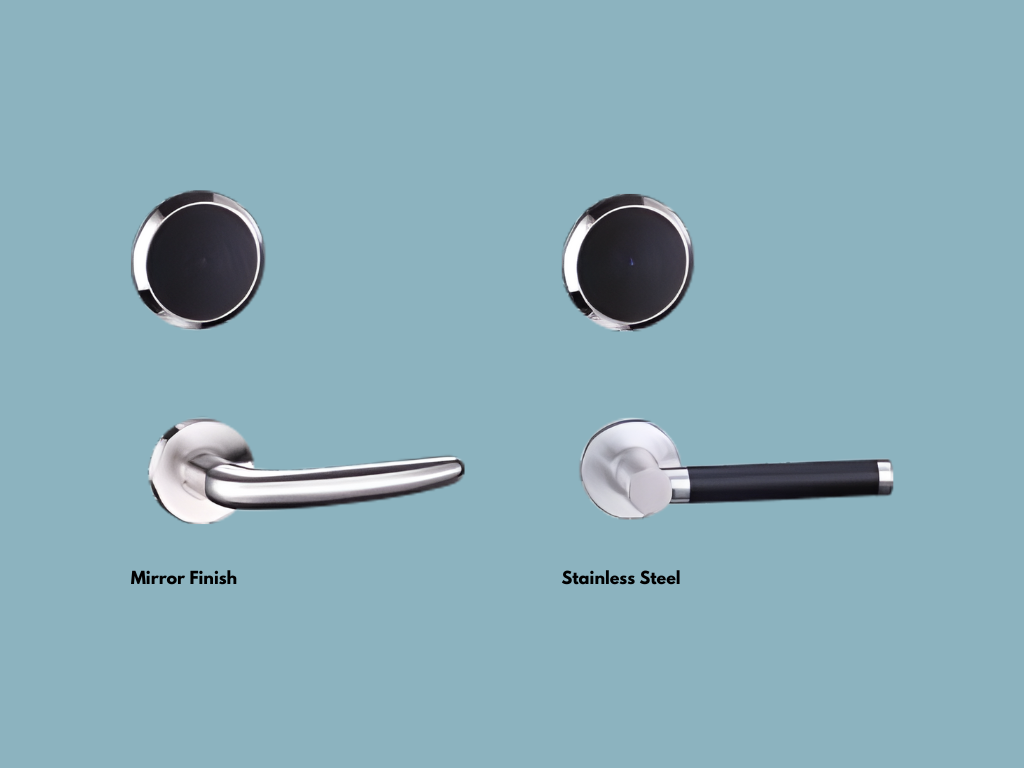

Reader, handle, and exterior trim.

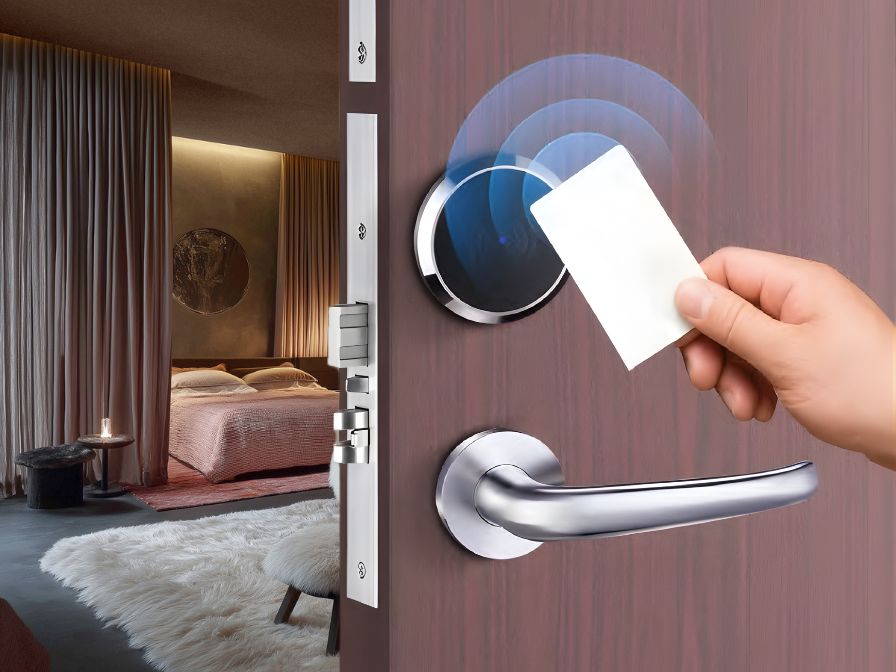

Typical upscale hospitality installation.

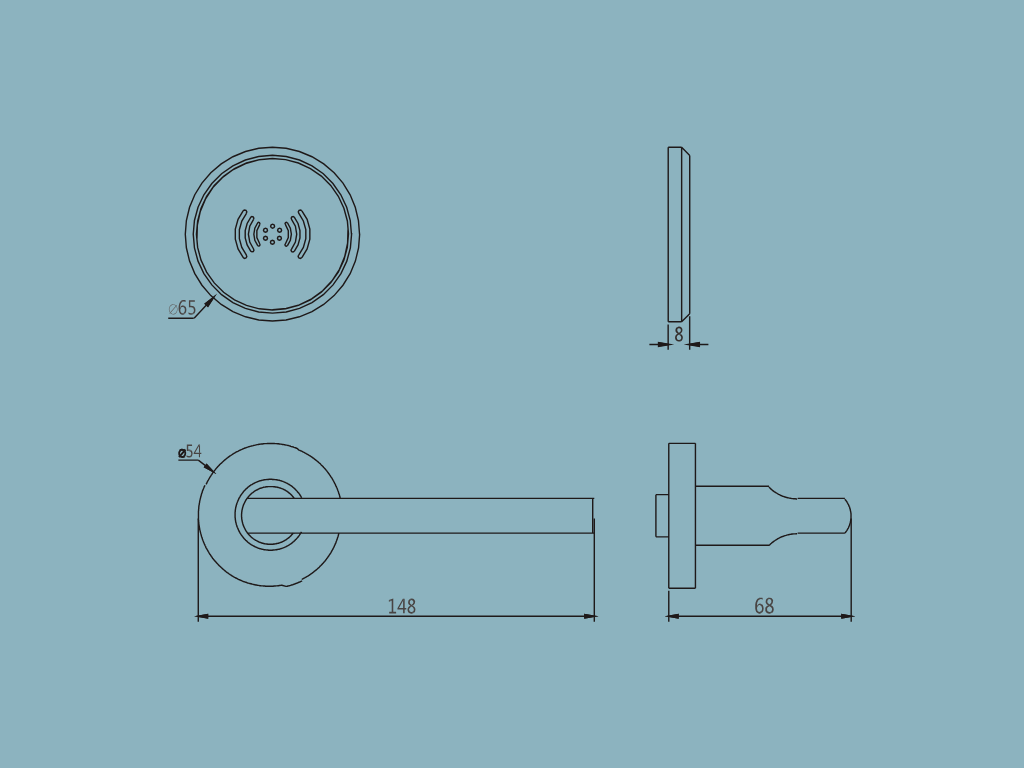

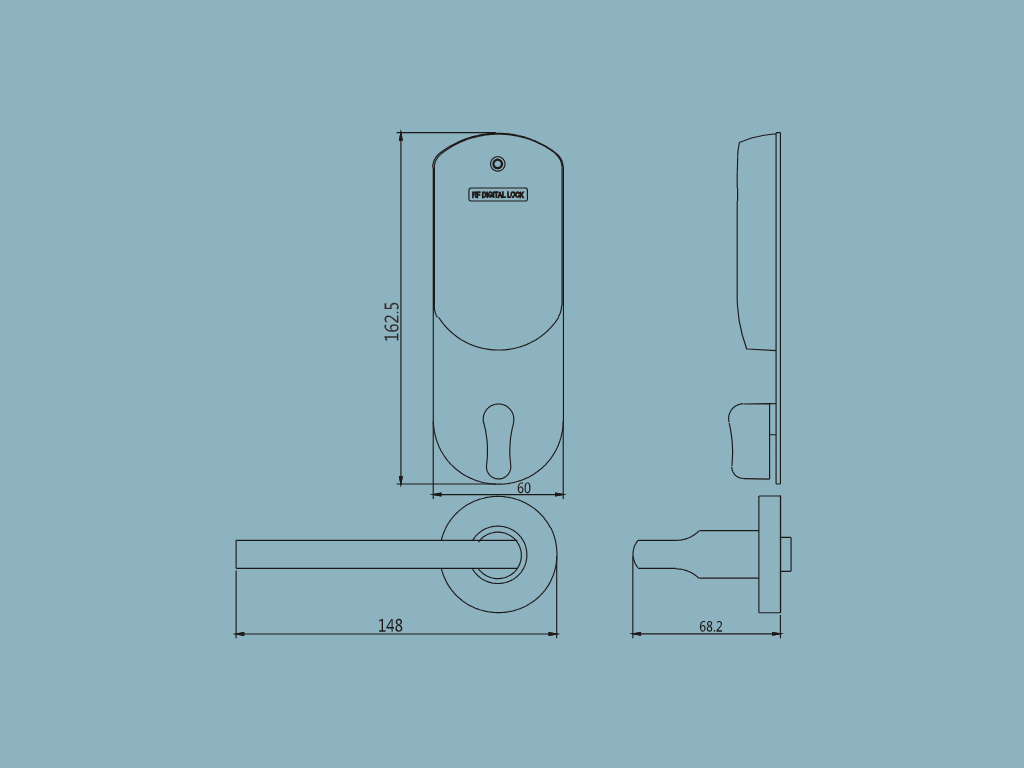

Clearance and cutout guidance.
